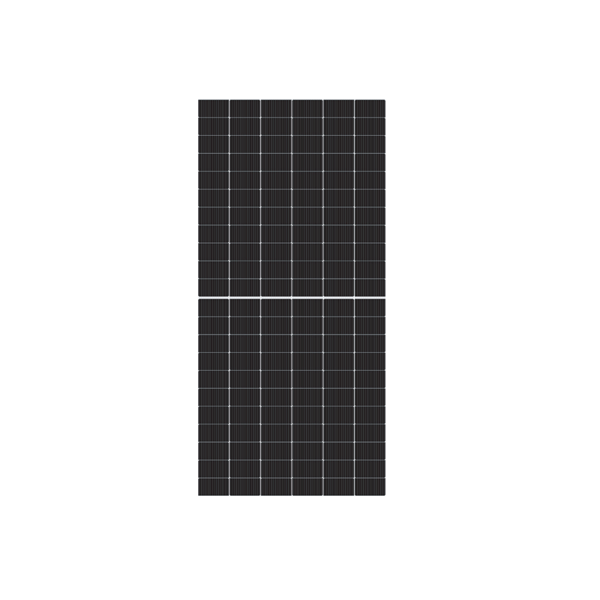

PRBS"LPro HD 600-620W

Description

Bifacial technology enables additional energy harvesting from rear side (up to 30%)

30-year lifespan delivers 10-30%more power compared with conventional P-type modules

The natural lack of LID in the N-type solar cell can increase power generation

Excellent low irradiance performance

Better light trapping and current collection to improve module power output and reliability

Industry-leading, lowest thermal coefficient

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature

Certified to withstand 2400 Pa of wind load and 5400 Pa of snow load

100% triple EL test,which greatly reduces the hidden cracks rate

WARRANTY INSURANCE

Optional performance warranty insurance.Please contact our local sales staff for more information.

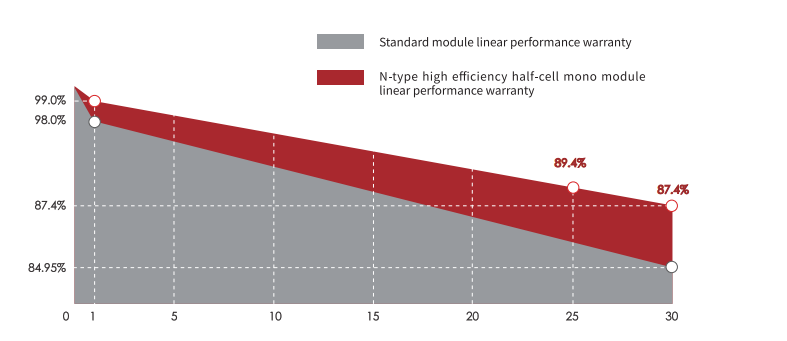

LINEAR PERFORMANCE WARRANTY

15 years

Product quality & Process guarantee

30 years

Linear power guarantee

0.40 %

Annual degradation

COMPREHENSIVE CERTIFICATES

ISO 9001: Quality Management System

ISO 14001: Environmental Management System Standard

ISO 45001: International Occupational Health and Safety Assessment System Standard

SA8000: 2014 Social Accountability Management System

*Different markets have different certification requirements Also,the products are under rapid innovation.

Please confirm the certification status with regional sales representatives.

Electrical Specification(STC*)

Model of modules	TS-BGT66(600)-G11		TS-BGT66(605)-G11		TS-BGT66(610)-G11		TS-BGT66(615)-G11		TS-BGT66(620)-G11
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum power-Pmp(W)	600	459	605	462	610	466	615	470	620	474
Maximum power voltage-Voc(V)	48.4	46	48.7	46.2	49	46.5	49.3	46.8	49.6	47.1
Maximum power current-Isc(A)	15.8	12.73	15.83	12.75	15.86	12.78	15.89	12.81	15.92	12.84
Open-circuit voltage-Vmp(V)	40.3	37.9	40.5	38.1	40.8	38.3	40.98	38.6	41.22	38.88
Short-circuit current-lmp(A)	14.91	12.11	14.94	12.13	14.96	12.16	14.98	12.18	15.03	12.2
Module efficiency-nm(%)	22.2		22.4		22.6		22.8		23

STC  (Standard Testing Conditions):Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass 1.5

NMOT  (Nominal  Module  Operating  Temperature):Irradiance  800W/m²,Ambient  Temperature  20℃,Wind  Speed  1m/s

Electrical Specification(NMOT*)

Peak Power (Pmax)(W)	666	670	676	680	686
MPP Voltage (Vmp)(V)	48.4	48.7	49	49.3	49.6
MPP Current (Imp)(A)	17.51	17.54	17.57	17.61	17.64
Open Circuit Voltage (Voc)(V)	40.3	40.5	40.8	40.98	41.22
Short Circuit Current (Isc)(A)	16.52	16.55	16.58	16.6	16.65

Mechanical Date

Module dimensions (L*W*H)	2382x 1134x 30 mm
Weight	32.5 kg
Cell	132 cells, N-type monocrystalline
Front glass	2.0mm, anti-reflection coating
Back glass	2.0mm, heat strengthened glass
Frame	Anodized aluminum alloy
Junction box	IP68, 3 diodes
Output wire	4.0 mm²
Wire length	300mm/1200mm/customized
Connector	MC4 Compatible
Packaging specification	36pcs/pallet; 720 pcs/40'HQ

Operating Parameters

Power tolerance (w)	(0,+5)
Maximum system voltage (V)	1500
Maximum rated fuse current (A)	30
Current operating temperature (C)	-40~+85 °C
Mechanical load	5400 Pa*/ 2400 Pa

Temperature Performance Ratings

Temperature coefficient (Pmax)	-0.30 %/C
Temperature coefficient (V。)	-0.28 %/C
Temperature coefficient (Is)	+0.04%/°C
Nominal Module Operating Temperature	43±2℃

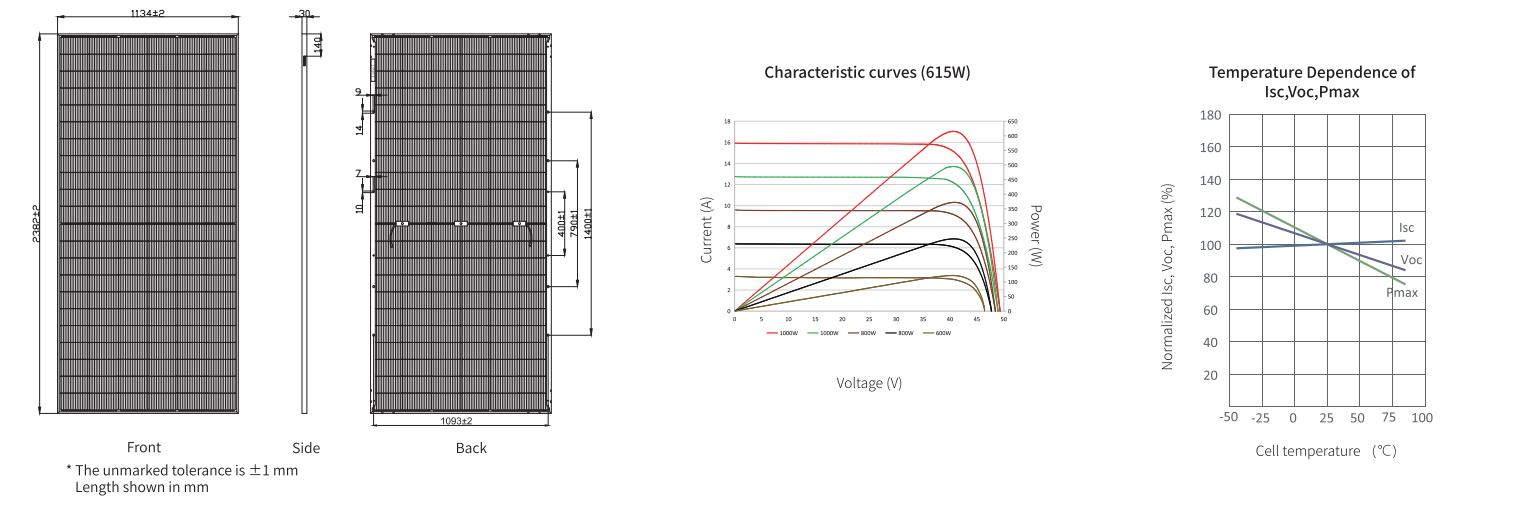

Module Dimension(MM）
